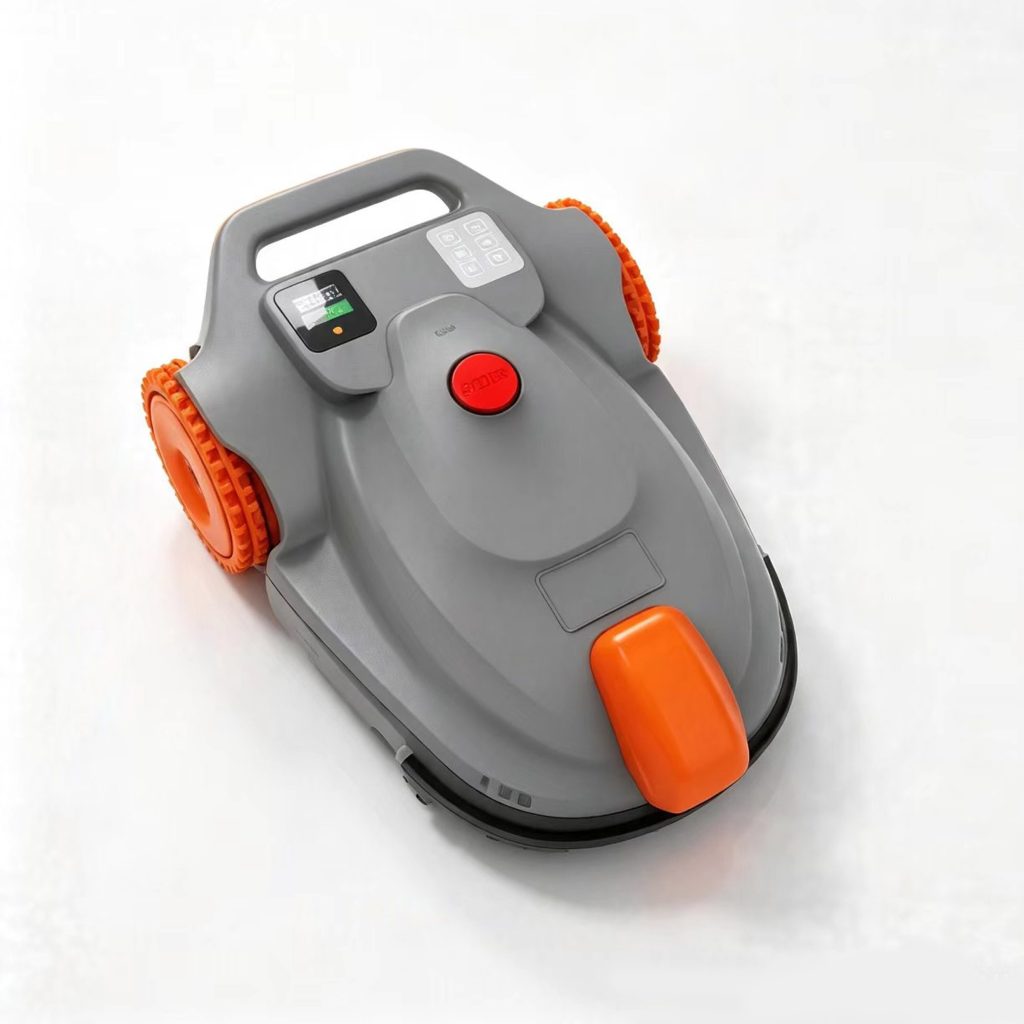

M21F-Auto Autonomous Flat-blade Mower
Application Scenarios
Suitable for small & medium private courtyards, standardized mini orchards and villa lawns with flat terrain. It supports zone management and scheduled automatic mowing, ideal for clients looking for lightweight unattended grass maintenance solutions.
Key Parameters
Container Loading: 392 units per 40HQ container (with pallets)
Single-battery Working Coverage: 150–200㎡; Max applicable area: 1600–3000㎡
Travel Speed: 0–0.5m/s adjustable
Cutting System: 3 rotary blades, cutting width 21cm; cutting height adjustable from 3–6cm
Power: 4Ah lithium battery, fully electric drive; noise level: 59dB, IPX5 waterproof
Intelligent Functions: RTK + AI vision + IMU integrated navigation, AI obstacle avoidance, Bluetooth & 4G connection, APP remote control, GPS anti-theft tracking
Machine Dimension: 67*44.2*30.7cm; Net Weight: 13.5kg
M55F Remote Control Gasoline Flat-blade Mower
Application Scenarios
Medium & small mountain orchards, terraced farmlands, slope wasteland, scenic green belts and hillside weed removal. The crawler chassis delivers stable traction on gentle slopes, and gasoline power supports all-day continuous operation without battery limits.
Key Specifications
Engine: 224CC gasoline engine, output power 6.1Ps, compatible with 92# gasoline
Cutting width: 50cm, blade speed 3600 r/min
Working efficiency: 2 acres per hour, average fuel consumption 1 L/h
Walking system: 24V brushless motor crawler drive
Machine dimension: 108*97*65.5 cm
Net weight: 198 kg
Packing wooden box size: 123*112*71 cm, box weight 30 kg

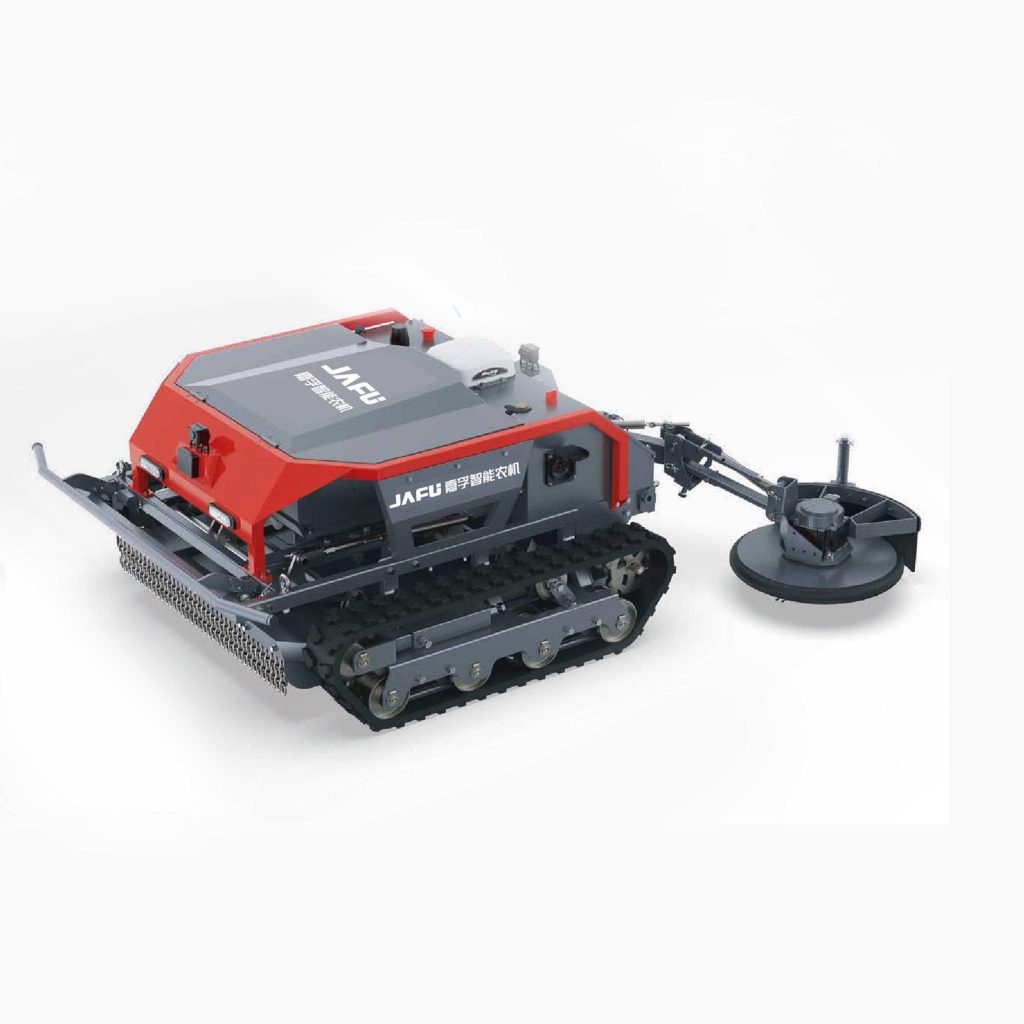

M80F-Auto Intelligent Electric Crawler Mower
Application Scenarios
Large standardized fruit orchards (peach, grape, pear, citrus), municipal park green belts, scenic areas, roadside and dam slope trimming. It works autonomously on flat open ground, and remote control mode ensures operator safety on steep slopes.
Key Specifications
Blade design: 3-segment anti-collision blades to reduce impact damage
Power: 4KW main cutting power, 2KW walking power, lithium iron phosphate battery
Cutting width: 80cm, adjustable mowing height range
Max climbing angle: 42°
Operation modes: Fully automatic unmanned mode + handheld remote control mode
Sensing system: GNSS-RTK centimeter positioning, radar + visual perception sensors
Machine dimension: 172.5*116.0*65.5 cm
Single working coverage: Up to 9,100 ㎡
M90F Remote Control Flat-blade Mower
Application Scenarios
Medium-large orchards, large-area wasteland, highway green belts and mountain slope weeding. Higher power and wider cutting width greatly boost daily mowing efficiency.
Key Specifications
Engine: 452CC gasoline engine, output power 15Ps, 92# gasoline applicable
Cutting width: 90cm, blade speed 3600 r/min
Working efficiency: 4 acres per hour, fuel consumption 1.5 L/h
Walking drive: 24V brushless motor crawler chassis
Machine dimension: 140*132*72 cm
Net weight: 325 kg
Wooden packing box size: 155*147*93 cm, box weight 40 kg
M100F Remote Control Flat-blade Mower
Application Scenarios
Large commercial orchards, vast mountain grasslands, municipal large lawns and rugged slope lands. Maximum cutting width and top power for heavy-duty large-area weeding work.
Key Specifications
Engine: 608CC gasoline engine, output power 17Ps, uses 92# gasoline
Cutting width: 100cm, blade rotation speed 3600 r/min
Working efficiency: 5 acres per hour, average fuel consumption 2.2 L/h
Walking system: 24V brushless crawler motor
Machine dimension: 15014272 cm
Net weight: 345 kg
Wooden box dimension: 165*157*93 cm, box weight 50 kg

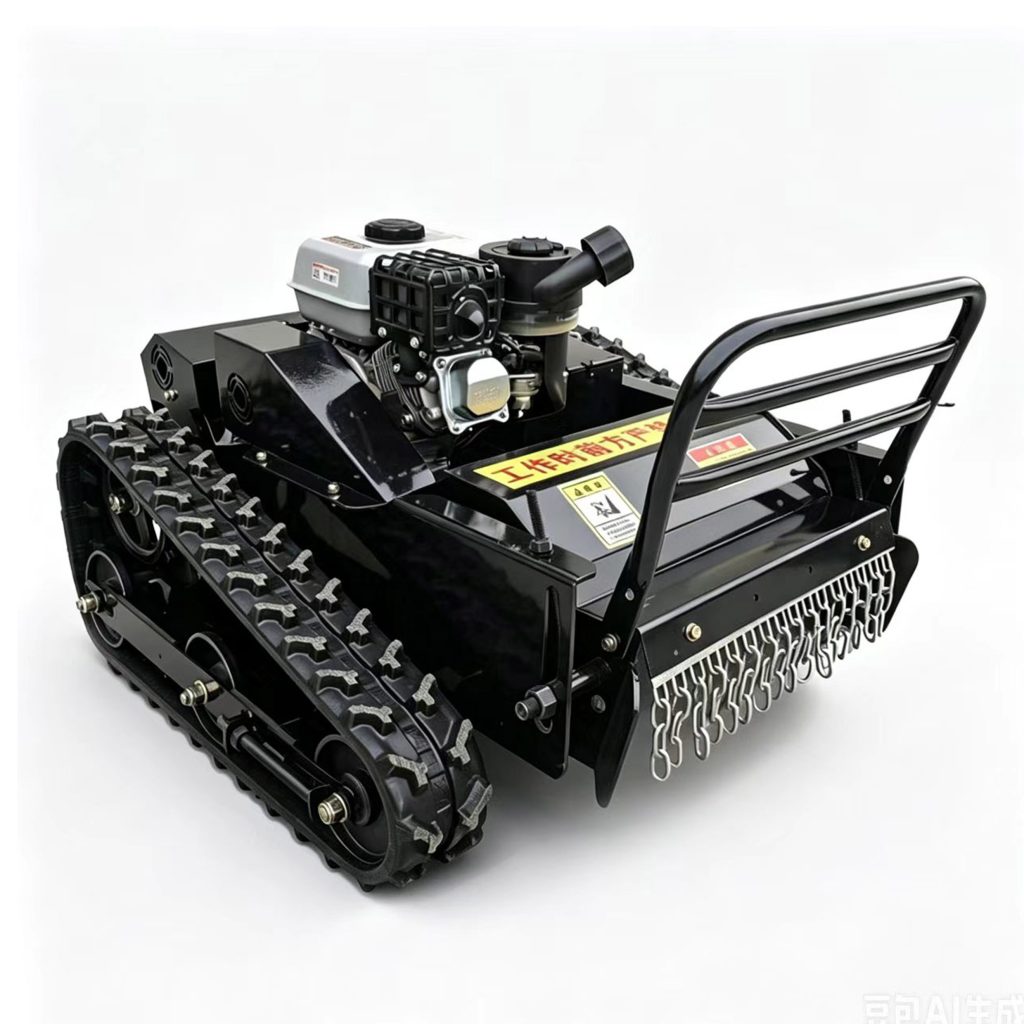

M50S Remote Control Vertical-blade Mower
Application Scenarios
Small orchards, hillside shrub lands, small green belts and private farmlands. Compact body for narrow row operation, vertical flail blades crush thick weeds thoroughly.
Key Specifications
Engine: Zongshen GB225 electric start engine, optional diesel (4L tank) / gasoline (2.6L tank)
Power generation: 1.5 kW
Cutting width: 50cm, 36 vertical swing blades, mowing height 0–12 cm
Walking system: Dual 580W brushless motors, 12cm wide tracks
Working speed: Up to 3.5 km/h, fuel consumption ~0.4 L/h
Lifting method: Manual cutting height adjustment
Machine dimension: 100*98*62 cm
Net weight: 192 kg
Wooden box size: 115*113*87 cm, box weight 30 kg

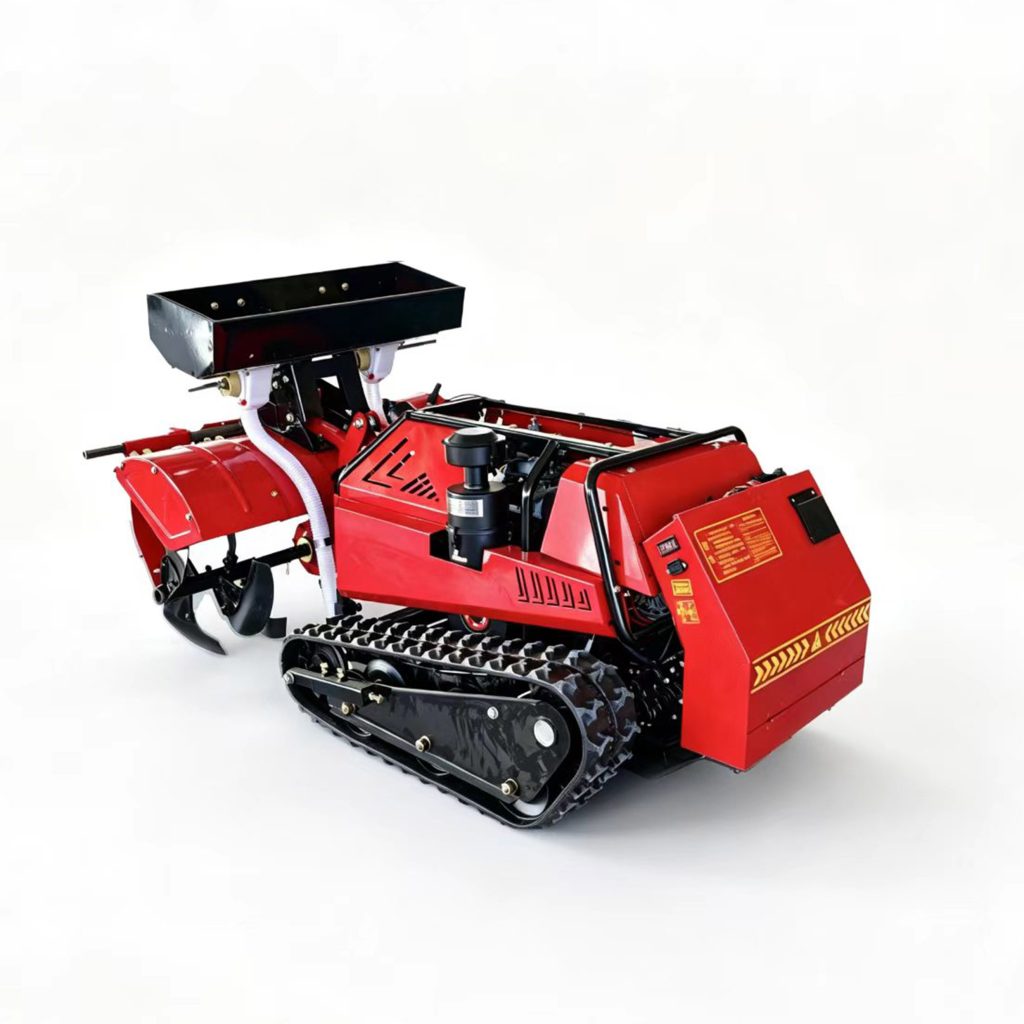

M80S-D Multi-function Remote Vertical-blade Mower
Application Scenarios
Orchard mowing, farm bedding, rotary tillage, ditching & fertilizing, snow removal; all-in-one machine for diversified farmland management.
Key Specifications
Power system: 195 single-cylinder air-cooled diesel engine
Walking motors: Dual 800W brushless motors, 15cm wide tracks
Matching generator: 2200W
Working width: Adjustable 60/80/100 cm
Lifting: Remote hydraulic height adjustment
Working efficiency: 4–6 acres per hour
Transmission: Belt + chain drive, tension clutch
Machine dimension: 188*80*78 cm
Net weight: 280 kg
Wooden box size: 203*95*100 cm, box weight 70 kg

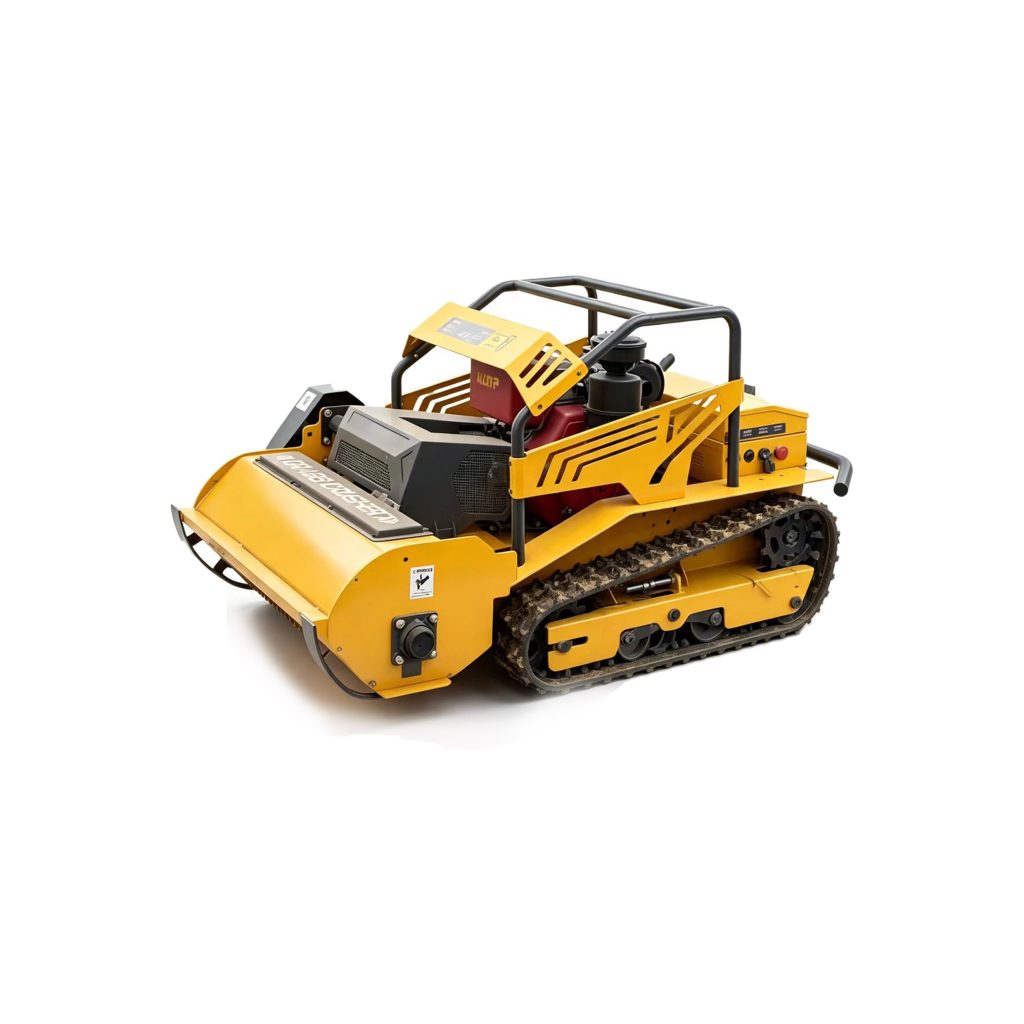

M80S Remote-controlled Vertical-blade Mower
Application Scenarios
Medium & large orchards, river bank slopes, dam green belts, municipal roadside trimming. Heavy-duty manganese steel blades handle thick grass, shrubs and hard weeds.
Key Specifications
Engine: 192 single-cylinder air-cooled engine, 13HP
Walking motors: Dual 800W brushless motors, track size 1506037 mm
Cutting width: 80cm, 6mm manganese steel serrated blades
Control distance: Max 300 meters remote control
Mowing height adjustable: 2–20 cm
Power system: Oil-electric hybrid, 24V 20Ah battery
Generator: 2000W inner excitation generator
Working speed: 0–5 km/h, differential transmission
Machine dimension: 160x90x89.5 cm
Net weight: 378 kg
Wooden box size: 160×110×103 cm, box weight 51 kg

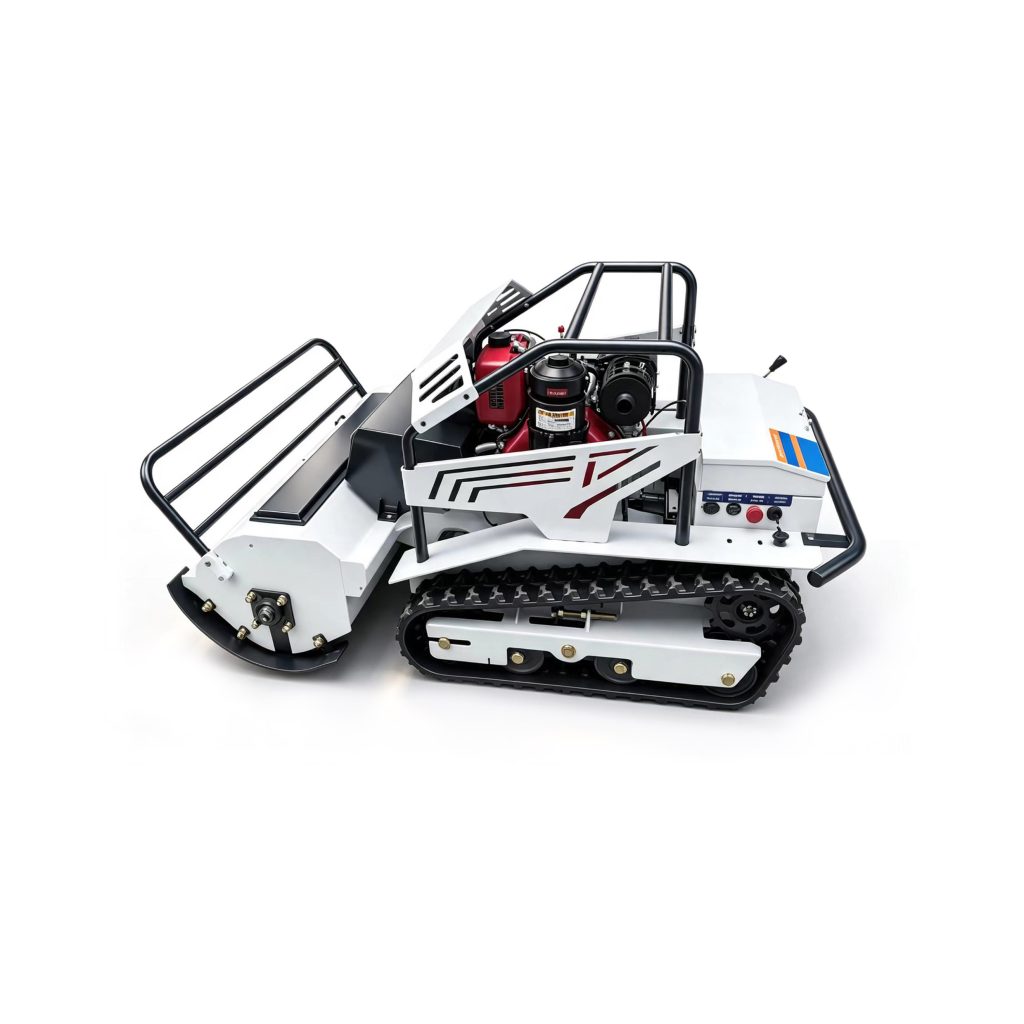

M100S Remote Vertical-blade Mower
Application Scenarios
Large commercial orchards, large slope green belts, wasteland with dense weeds, highway and reservoir embankment maintenance. Wider cutting width improves overall operation efficiency.
Key Specifications
Engine: 195 single-cylinder air-cooled diesel engine, 15HP
Walking motors: Dual 800W brushless motors, 15cm wide tracks
Cutting width: 120cm, thick 6mm manganese steel serrated blades
Remote control range: 300 meters
Adjustable mowing height: 2–20 cm
Power system: Oil-electric hybrid, 24V 20Ah battery
Built-in 2000W generator
Working speed: 0–5 km/h, differential drive
Machine dimension: 160x139x89.5 cm
Net weight: 418 kg
Wooden box dimension: 160×144×103 cm, box weight 60 kg

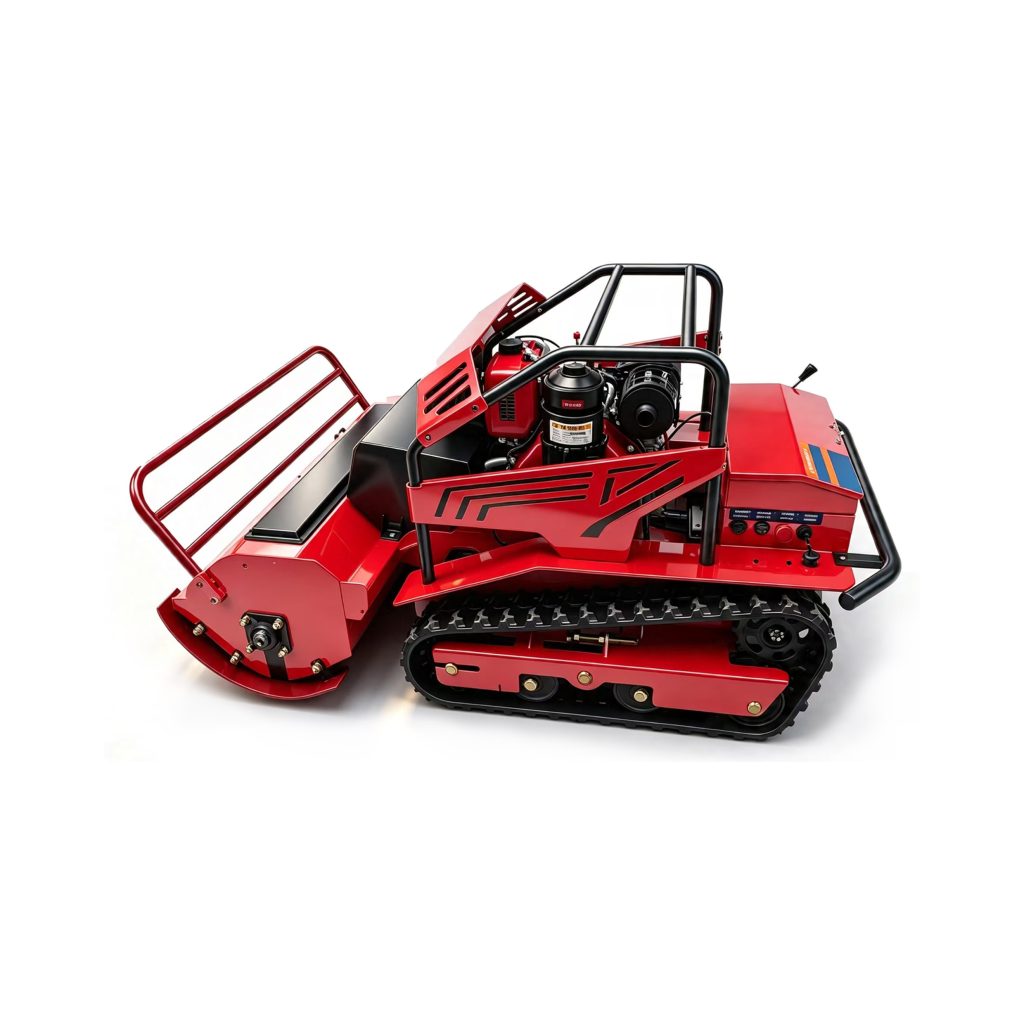

M120S Remote-controlled Vertical-blade Mower
Application Scenarios
Extra-large orchards, mountain shrub lands, large municipal green projects, rugged hillside trimming. The maximum 120cm cutting width delivers top-tier efficiency for large-area weeding.
Key Specifications
Engine: 195 single-cylinder air-cooled diesel engine, 15 horsepower
Walking power: Dual 800W brushless motors, 15cm tracks
Max cutting width: 120cm, 6mm thick manganese steel serrated blades
Remote control distance: Up to 300 meters
Mowing height adjustment: 2–20 cm range
Hybrid power system equipped with 2000W inner excitation generator
Transmission mode: Differential transmission, 24V 20Ah battery
Machine dimension: 160x139x89.5 cm
Net weight: 418 kg
Wooden packing box size: 160×144×103 cm, box weight 60 kg
